VISCOMETER B-ONE PLUS – Lamy Rheology

Viscometers and Rheometers

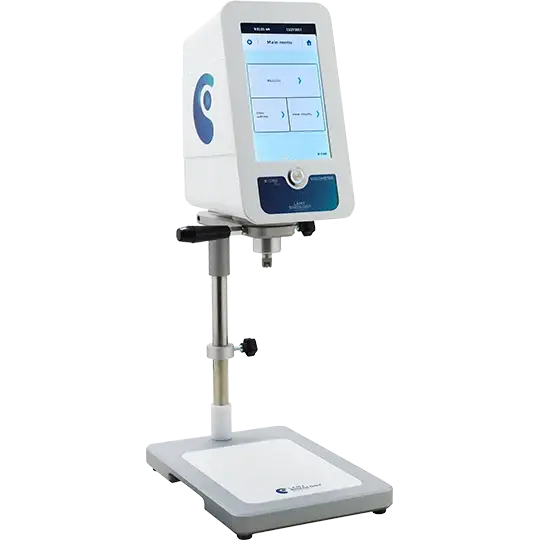

Advanced Rotating Springless Viscometer

The B-ONE PLUS 2 is a professional rotating springless viscometer featuring a 7″ touch screen display. This precision instrument is designed for accurate viscosity measurements in laboratory settings, offering unlimited speed selection between 0.3 and 250 rpm.

Exceptional Measurement Precision

The B-ONE PLUS 2 delivers outstanding accuracy with ±1% of full scale and repeatability of ±0.2%. It is available in both a Standard Version with torque range of 0.05 to 13 mNm and an LR Version with torque range of 0.005 to 0.8 mNm, allowing for adaptability to different testing requirements.

Comprehensive Display Options

The instrument’s display provides comprehensive measurement data including viscosity (in cP/Poises or mPa.s/Pa.s), speed, shear rate, torque (%-mNm), shear stress, time, and temperature (optional). This complete data presentation ensures thorough analysis of your samples.

Enhanced Security Features

The B-ONE PLUS 2 includes security features with an operator function that allows username entry with 4-digit code identification. A protected mode is also available to lock measurement conditions, ensuring consistency across tests and preventing unauthorized adjustments.

Multilingual Support

To accommodate global users, the B-ONE PLUS 2 supports multiple languages including French, English, Russian, Spanish, Turkish, German, Italian, Korean, and Portuguese, making it accessible for international laboratories.

Universal Connectivity

The instrument features a USB port for PC connections, allowing for data transfer and analysis. With a universal power supply of 90-240 VAC 50/60 Hz, the B-ONE PLUS 2 can be used in laboratories worldwide without special adapters.

Durable Construction

The B-ONE PLUS 2 features robust construction with a head measuring D180 x H230 x W130 mm, a hardened steel stand of L280 x W200 x H30 mm, a stainless steel rod with length of 500 mm, and a total weight of 6.7 kg, ensuring stability during operation.

Type of instrument Rotating springless viscometer with 7" Touch screen
Rotation speeds Unlimited number of speeds between 0.3 and 250 rpm
Torque range Standard Version: 0.05 to 13 mNm
LR Version: 0.005 to 0.8 mNm
Accuracy ±1% of the full scale
Repeatability ±0.2%
Display Viscosity (cP/Poises or mPa.s/Pa.s) - Speed - Shear rate - Torque (%-mNm) - Shear stress - Time - Temperature (in option)
Security and confidentiality Operator function with username and 4-digit code; Protected mode to lock measurement conditions
Languages French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese
Compatible measuring systems MS ASTM, MS BV, MS VANE, MS KREBS, MS SV, MS ULV
Supply voltage 90-240 VAC 50/60 Hz
PC connections USB Port
Dimensions and weight Head: D180 x H230 x W130 mm
Hardened steel stand: L280 x W200 x H30 mm
Stainless steel rod: Length 500 mm
Weight: 6.7 kg
Viscosity range With L1-L4 systems: 15-2,000,000 mPa·s
With R2-R7 systems: 100-240,000,000 mPa·s

What type of viscometer is the B-ONE PLUS 2?

The B-ONE PLUS 2 is a rotating springless viscometer with a 7" touch screen display, designed for laboratory applications requiring precise viscosity measurements.

What is the speed range of the B-ONE PLUS 2?

The B-ONE PLUS 2 offers an unlimited number of speeds between 0.3 and 250 rpm, providing flexibility for various testing requirements.

What torque ranges are available for the B-ONE PLUS 2?

The B-ONE PLUS 2 is available in two versions: a Standard Version with torque range of 0.05 to 13 mNm and an LR Version with torque range of 0.005 to 0.8 mNm.

How accurate is the B-ONE PLUS 2?

The B-ONE PLUS 2 provides an accuracy of ±1% of the full scale with repeatability of ±0.2%, ensuring reliable and consistent measurements.

What measurement parameters does the B-ONE PLUS 2 display?

The instrument displays viscosity (cP/Poises or mPa.s/Pa.s), speed, shear rate, torque (%-mNm), shear stress, time, and temperature (available as an option).

What security features does the B-ONE PLUS 2 offer?

The B-ONE PLUS 2 includes an operator function that allows username entry with 4-digit code identification and a protected mode that locks measurement conditions to prevent unauthorized changes.

What languages does the B-ONE PLUS 2 support?

The B-ONE PLUS 2 supports multiple languages including French, English, Russian, Spanish, Turkish, German, Italian, Korean, and Portuguese.

What power requirements does the B-ONE PLUS 2 have?

The B-ONE PLUS 2 operates on 90-240 VAC 50/60 Hz, making it compatible with power systems worldwide.

How does the B-ONE PLUS 2 connect to a PC?

The B-ONE PLUS 2 features a USB port for connecting to a PC for data transfer and analysis.

What are the dimensions of the B-ONE PLUS 2?

The B-ONE PLUS 2 has a head measuring D180 x H230 x W130 mm, a hardened steel stand of L280 x W200 x H30 mm, and a stainless steel rod with length of 500 mm. The total weight is 6.7 kg.
