Discover modern leaf spectroscopy

The SpectraVue Leaf Spectrometer measures transmission, absorption, and reflection, along with many other plant stress and pigment indicators using built-in indices.

Powerful, handheld leaf spectroscopy

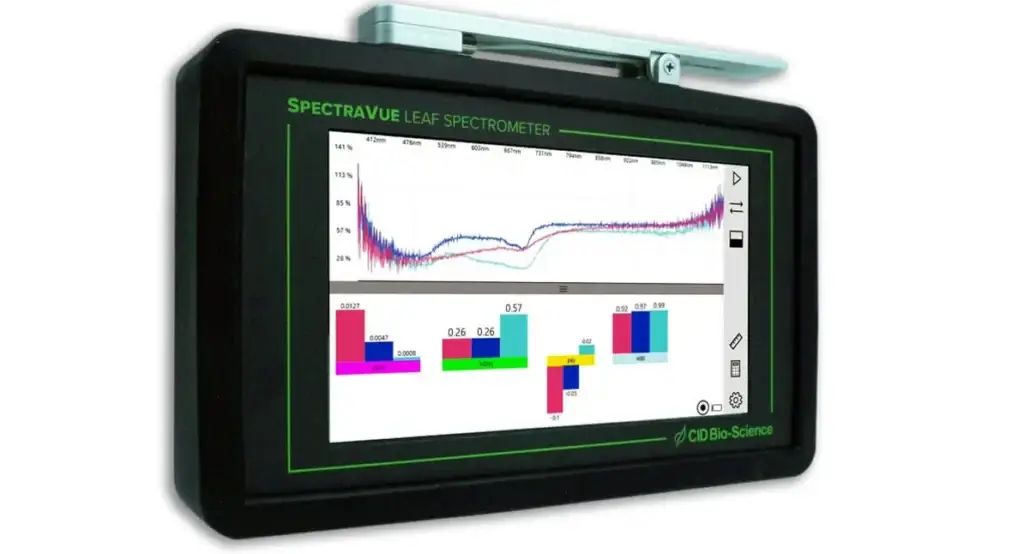

The newly redesigned SpectraVue Leaf Spectrometer has been upgraded with a powerful new spectrometer, handheld form factor, touchscreen display, and analysis software. It features a 360-1100 nm spectrometer, giving you cutting-edge analytical range for your plant research.

Key Features

– Fully integrated 7″ IPS touchscreen display allowing for easy on-board data management & analysis
– Full suite of on-board spectral analysis software and 40+ built-in indices for real-time remote insight
– Integrated GPS tagging ensures consistent, traceable measurements in the field
– Lightweight & portable design allows for one-handed operation in any field conditions
– Measures absorbance, transmittance & reflectance in a single scan
– Powerful 360-1100 nm spectrometer for comprehensive analysis

Applications

– Crop Optimization: Measure the effects of environmental variables on nutrient and pigment quantification and use chemometric modeling to optimize plant health and yield
– Forest Productivity & Sustainability: Leaf spectral data in response to stressors can drive insights into forest health and management practices
– Environmental research: Use spectral analysis to conduct non-destructive assays of physiological responses to different environmental conditions

Specifications

Dimension 220 mm x 150 mm x 30 mm
Weight 952 g
Operating Environment -30° to 70° C storage, -10° to 50° C Operation, 0% – 90% noncondensing humidity
Minimum Leaf Size 20 mm x 20 mm
Display 7" 1024 x 600 IPS Display
Languages English, Spanish
Measure modes Reflectance, Transmittance and Absorbance

Detector Specifications

Detector CMOS Linear Array
Wavelength Range 360 – 1100 nm
Pixels 2048 pixels
Pixel Size 14 μm x 200 μm
Pixel Well Depth 100,000 electrons
Signal-To-Noise Ratio 330:1 (at full signal)
A/D Resolution 16 bit
Dark Noise 16 counts
Corrected Linearity >99.8%
Sensitivity 337.500
Wavelength Data Increment 0.55 – 0.7 nm

Spectroscopic

Grating 300 lines/mm, Slit = 55 μm
Optical Resolution 2.4 FWHM in nm
Integration Time 30 μs – 60 seconds
Dynamic Range 3300:1
Stray Light 0.2 – 1.0%

Electronics

Power Supply Two 18650 batteries and USB-C
Battery life 3 – 4 hours
Trigger Modes Manual

Is the CI-710s waterproof?

The CI-710s is not designed to be waterproof and should not be used underwater. The CI-710s is designed to be water-resistant. Use in light rain is fine, however, there are electronics that can be damaged from water entering the instrument, so it is not recommended to use the CI-710s during heavy rainfall.

Does this product come with a warranty?

All CID Instruments come with a 12-month warranty at the point of sale. The warranty covers repairing and replacing defective parts of the instrument that were manufactured directly by CID Bioscience. The warranty does not cover wear and tear, neglect, misuse, accident, or excessive deterioration. Further, unauthorized repair and alteration by an unauthorized party voids the warranty.

What are the operating conditions for this product?

The operating conditions for the CI-710s are –10° to 50° Celsius and 0%-90% noncondensing humidity.

What different types of researchers use the CI-710s?

Plant physiology, forestry, environmental, and crop researchers all benefit enormously from the metrics that SpectraVue Leaf Spectrometer provides.

How much does the SpectraVue weigh?

The SpectraVue Leaf Spectrometer weighs 952 g.
