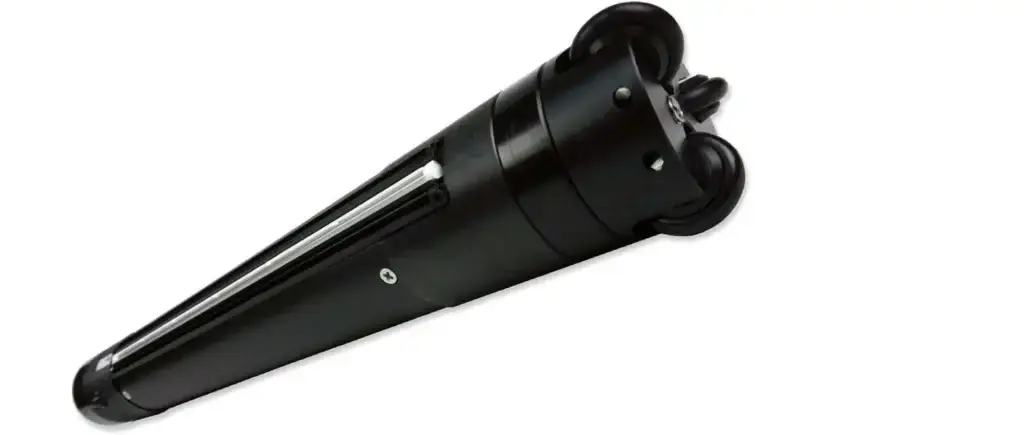

CI-602 Narrow Gauge Root Imager – CID Bio-Science

Reimagining root research

The CID Bio-Science Narrow Gauge Root Imager makes high-resolution observation of root growth and behavior simple and non-destructive.

Improving root research in new and existing installations

With the Narrow Gauge Root Imager, vital root research can be carried out non-destructively in virtually any 2″ diameter root tube installation.

Lightweight & portable

After installing root tubes in desired locations, simply transport the handheld scanner to each location to begin taking quick and easy measurements.

High-resolution scanner

With the ability to scan at up to 1200 DPI, The Narrow Gauge Root Imager is capable of taking scans at double the resolution of the CI-600.

Faster scan times

Substantially improved scan times vs the CI-600. Take scans more than 5x faster with the Narrow Gauge Root Imager’s state-of-the-art scan head.

Fits narrow gauge root tubes

Carry out non-destructive root research in virtually any 2″ diameter root tube installation.

RootSnap!

Use our free software RootSnap! to quickly and easily calculate root parameters such as length, area, volume, diameter & branching angle.

Included tablet computer

Scanner operation is controlled via a provided, intel-powered Acer tablet with pre-installed specialty software.

A versatile minirhizotron system

Capture high-resolution, digital images of living roots in soil over multiple growing seasons with the CI-602 Narrow Gauge Root Imager. Designed for use with 2-inch tubes, users now have the ability to work within new or existing tube installations.

Image Size21.59 cm × 18 cm (8.5″ × 7.1″)
Scan Speed~30 seconds (depending on selected resolution)
Image ResolutionUp to 1200 DPI
InterfaceUSB Cable
Scan Head Dimensions35.9 cm long × 4.6cm diameter (14.125" x 1.8″)
Control Box Dimensions18 cm × 7.5 cm × 5 cm (7.125″ × 3″ × 2″)
Total Dimensions1950 g or 4.3 lbs
Root Tube Dimensions
Inner Diameter5 cm (2″)
Outer Diameter5.7 cm (2.25″)
Wall Thickness3.2 mm (.125″)
Standard Length105 cm (41.3″)

Does this product come with a warranty?

All CID instruments come with a 12-month warranty from the point of sale. The warranty covers repairing and replacing defective parts of the instrument that were manufactured directly by CID Bio-Science. The warranty does not cover wear and tear, neglect, misuse, accident, or excessive deterioration. Further, repair and alteration by an unauthorized party voids the warranty. More information can be found in the operation manual of your instrument.

Is the CI-600 waterproof?

The CI-602 is not designed to be waterproof and should not be used underwater. The CI-602 is designed to be water-resistant. Use in light rain is fine, however, there are electronics that can be damaged from water entering the instrument, so it is not recommended to use the CI-602 during heavy rainfall. Furthermore, it should be noted that the tablet provided with the CI-602 is not waterproof and a waterproof case would need to be purchased for use in wet conditions.

What are the minimum and maximum operating temperatures?

You can use the CI-602 root imager in temperatures ranging from -5° C to 55° C.

What different types of researchers use the Narrow Gauge Root Imager?

Crop, forestry, environmental, plant, climate, hydrology, and soil researchers all benefit enormously from the metrics that the Narrow Gauge Root Imager provides.

Do I have to purchase RootSnap! separately?

No! RootSnap! software is free to all users of CID Bio-Science Root Imagers.
