LED-Stroboscope HELIO-STROB tripLED – ELMED

Industrial Stroboscopes

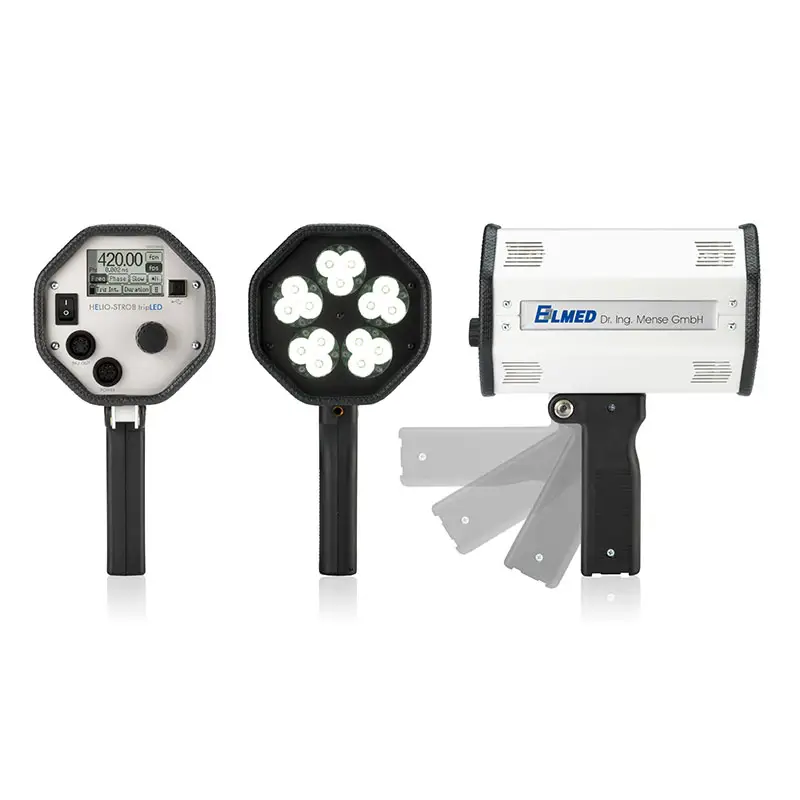

HELIO-STROB tripLED – the powerful and bright LED stroboscope for portable use in industry and quality assurance

Thanks to the latest LED and reflector technology, the light output is now comparable to that of conventional stroboscopes. Extremely short flash impulses with constant brightness enable “freeze images” as well as a slow-motion observation of fast processes.

Thanks to the intuitive handling via touch panel and an “intelligent” twist knob operation you easily get accurate and reliable results.

Applications

The HELIO-STROB tripLED can be effectively used in the field of quality control, vibration analysis and speed measurement as well as for the setting up of machines. Besides the choice between internal and external control of the flash rate, the HELIO-STROB tripLED presents a convincing range of interesting extra functions.

Key Features

  • High performance LEDs with lens and reflector system
  • High and constant brightness up to 5500 Lux (@ 50 cm)
  • Flash frequency up to 840 Hz / 50400 min-1
  • Mains and battery operation
  • Internal and external control of the flash rate (ext. triggering up to 8000 Hz*)
  • Clock pulse output (TTL) for synchronisation of further devices
  • Easy to operate via touch panel
  • Slow-motion function
  • Electronic shifting of the focus (phase shifting)
  • Adjustable flash duration for pin sharp images
  • Frequency divider and multiplier
  • Hand-held or tripod operation
  • Serial interface (USB)

Package Contents

  • HELIO-STROB tripLED
  • Mains unit / charger 100 – 240 VAC
  • Transport box
  • 5-pin male jack for ext. triggering
  • Operation manual
Art.-No.0300907003
Power supplyIntegrated battery, combined mains unit / battery charger 100 - 240 VAC, 50 - 60 Hz
Power consumptionMax. 24 W
Dimensions182.5 x 117 x 117 (mm)
WeightApprox. 1.2 kg
Light source15 ultra-bright CREE LEDs
Frequency range1 - 840 Hz / 60 - 50400 min-1
Internal controlTwist knob and touch panel
External controlExternal transducer, pos. impulses, 5 - 30 V, input frequency 8000 Hz* max., variable transformation ratio 1:10 - 10:1
Trigger output5 V TTL
Measured value displayLC display, 51 x 31 mm, display in Hz / min-1
Resolution of the displayUp to 0.01 Hz / 0.1 min-1
Adjustable flash duration1 - 100 µs / 0.5 - 3.6°
Phase shifting0° - 540° / 0 - 999.99 ms
Slow motion functionBeat frequency -5.00 Hz up to +5.00 Hz
Serial interfaceUSB (type B)
Light intensityMax. 5500 Lux (at a distance of 50 cm)
Operating temperature0° ... +40° C
Storage temperature-20° ... +50° C
Air humidityMax. 80% relative air humidity at 30° C
CertificationCE

What are the main applications for the HELIO-STROB tripLED?

The HELIO-STROB tripLED is primarily used in quality control, vibration analysis, speed measurement, and for setting up machines.

What is the maximum flash frequency of the HELIO-STROB tripLED?

The maximum flash frequency is 840 Hz / 50400 min-1 for internal control, and up to 8000 Hz with external triggering using the integrated frequency scaler.

Can the HELIO-STROB tripLED be operated without mains power?

Yes, the device features both mains and battery operation with an integrated battery, allowing for portable use.

What is the maximum light intensity of the stroboscope?

The HELIO-STROB tripLED provides a maximum light intensity of 5500 Lux at a distance of 50 cm.

What is included in the package?

The package includes the HELIO-STROB tripLED device, a mains unit/charger (100-240 VAC), a transport box, a 5-pin male jack for external triggering, and an operation manual.
