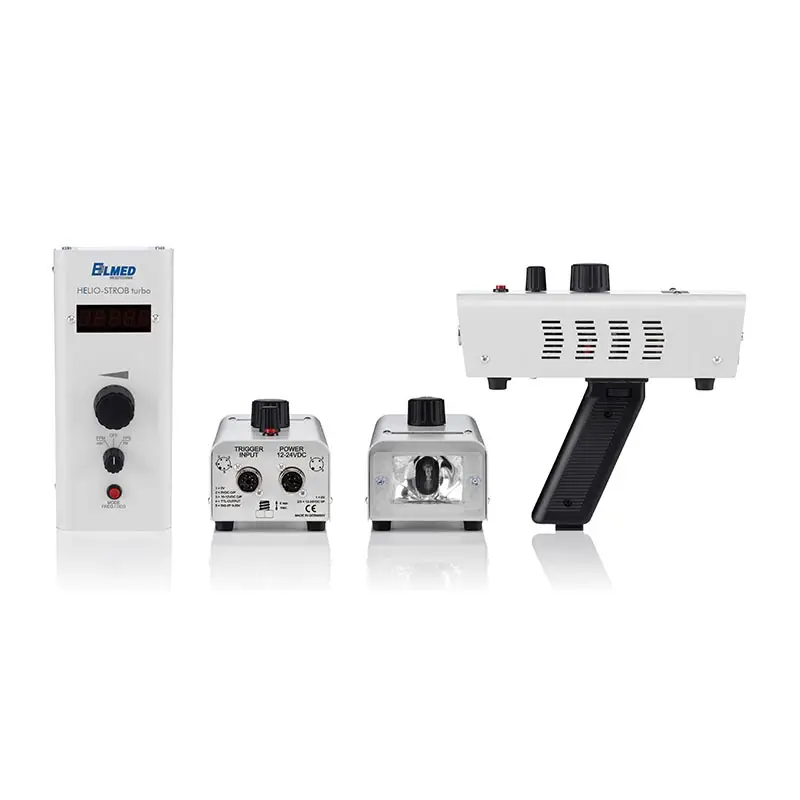

Hand-held stroboscope HELIO-STROB turbo – ELMED

Precision and light output in rugged industrial-grade

The HELIO-STROB turbo provides short flash impulses with constant brightness. Even the smallest parts are displayed pin sharp, without any motion blur.

Thanks to the intuitive handling via the “smart” encoders you easily get accurate results in the speed measurement, in the vibration analysis or in the observation of rapid movement sequences.

The flash frequency can either be controlled by the accurate internal trigger or by an external trigger. Proximity switches and optical sensors can be connected directly to the signal input of the stroboscope. Additional devices can be triggered synchronously by the TTL-output.

Key Features

  • Constant brightness up to 600 Lux (@ 50 cm)
  • Flash frequency up to 435 Hz / 26100 min-1
  • Mains and battery operation (external battery pack)
  • Internal and external control of the flash rate (ext. triggering)
  • Clock pulse output (TTL) for synchronisation of further devices
  • Electronic shifting of the focus (phase shifting)
  • Hand-held or tripod operation
Light sourceFlash tube, plug-in installation
Flash duration4.3 μs (60 Hz)
Frequency range1 – 435 Hz / 60 – 26100 min-1
Control of the flash rateTwist knob, external control by transducer, pos. impulses, 3 to 20 V
Measured value displayDigital, 5-digit 7-segment display, display in Hz / min-1
Resolution of the display0.01 Hz / 1 min-1
Phase shifting0° – 540°
Light output0.13 Ws max.
Light intensity600 Lux max. (at a distance of 50 cm)
Total power21.2 W
Power consumptionApprox. 32 W
Dimensions195 x 80 x 56 (mm)
WeightApprox. 0.6 kg
Operating temperature0° ... +40° C
Storage temperature-20° ... +60° C
Air humidityMax. 80% relative air humidity at 30° C
CertificationCE

What power supply options are available for the HELIO-STROB turbo?

The HELIO-STROB turbo is available in different versions: 12-24 VDC, with mains adapter 100-240 VAC, or as a combination set for both mains and battery operation.

What is the maximum flash frequency of the HELIO-STROB turbo?

The HELIO-STROB turbo has a frequency range of 1-435 Hz, which equals 60-26100 min-1.

Can the HELIO-STROB turbo be mounted on a tripod?

Yes, the HELIO-STROB turbo is designed for both hand-held and tripod operation.

What is the maximum light intensity of the stroboscope?

The HELIO-STROB turbo provides a maximum light intensity of 600 Lux at a distance of 50 cm.

Can other devices be synchronized with the HELIO-STROB turbo?

Yes, the HELIO-STROB turbo features a clock pulse output (TTL) for synchronization of additional devices.
