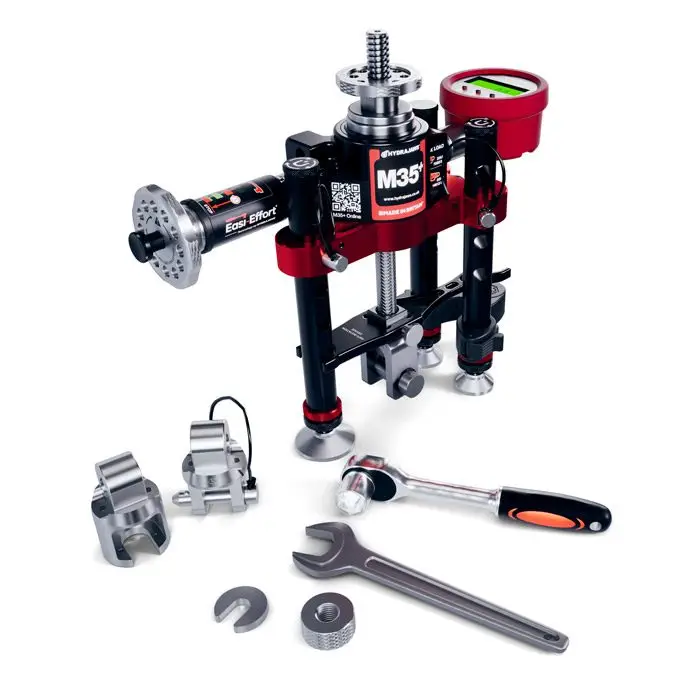

M35+ Digital Pull Tester with ‘Easi-Effort®’ Technology
The Hydrajaws M35+ introduces cutting-edge ‘Easi-Effort®’ technology, setting a new standard in the efficiency of applying torque for mechanical anchor pull testing.
Revolutionary Dual Load Capacity
The world’s first modular dual load capacity digital pull tester. The powerful tester not only has a 35kN (7,868 lbf) capacity in standard guise, but it also has 65kN (14,813 lbf) capacity with further optional load spreading bridges. This unrivalled dual load capacity means it can handle an extensive range of construction applications.
Easi-Effort Technology
With a maximum torque of 9.8Nm at 35kN and 18.8Nm at 65kN, the M35+ demonstrates a remarkable reduction in required effort compared to its counterpart, the Hydrajaws M2050. While the M2050 demands 68Nm at 50kN, the M35+ achieves comparable results with nearly a quarter of the torqueing effort.
Incredibly Lightweight and Durable
Crafted from top-grade materials including titanium, the Hydrajaws M35+ is the most lightweight pull tester on the market and is built to withstand the toughest environments.
Advanced Data Logging
Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the free-to-use Hydrajaws Verify App.
Easy Portability
The Hydrajaws M35+ arrives in a compact, tailor-made rugged rucksack, engineered for easy transportation to even the most remote and challenging job sites.
